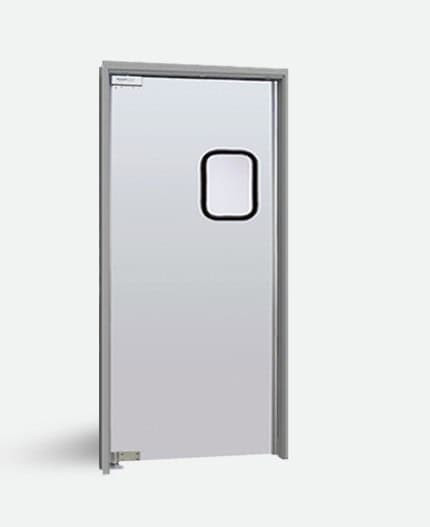

Eliason SCP-8 Laminate Traffic Door– Single Door
*No Door Frame Included
The Eliason SCP-8 Single Traffic Door is a commercial swinging door designed for restaurant kitchens, food service areas, and high-traffic commercial environments. Built with a moisture-resistant composite wood core and decorative high-pressure laminate faces, this durable traffic door provides both a clean finished appearance and reliable commercial performance.
The door operates with the Eliason Easy Swing® hinge system, allowing the door to open in both directions and automatically return to center. Stainless steel edge trim and impact plates protect the door in high-traffic areas while the integrated vision window improves safety between service and kitchen spaces.
Traffic Door Features
• Durable high-pressure laminate door faces
• Moisture-resistant composite wood core construction
• Eliason Easy Swing® hinge system for smooth double-acting operation
• Stainless steel edge trim and hinge covers for added durability
• 18" stainless steel base plates standard on both sides
• 9" × 14" clear acrylic vision window for improved visibility
• Decorative laminate finish options from Formica and Wilsonart
• Optional bumpers, kick plates, and aluminum bumper strips
Construction Details
| Feature | Specification |
|---|---|
| Door Type | High Pressure Laminate Traffic Door |
| Core | Moisture resistant composite wood |
| Door Thickness | 3/4" |
| Face Sheet | Decorative high pressure laminate (.032") |
| Window | 9" × 14" clear acrylic |
| Base Plate | 18" stainless steel (both sides) |
| Hinge | Eliason Easy Swing® hinge system |
| Edge Protection | Stainless steel edge trim |
Optional 48" stainless steel impact plates are available for heavy-duty environments.
Ideal Applications
The SCP-8 single door is commonly used in:
• Restaurant kitchens
• Bars and hospitality service areas
• Cafeterias and food service facilities
• Grocery stores and food preparation rooms
• Institutional kitchens and hospitals
This traffic door allows staff to move quickly between rooms while maintaining visibility and durability in high-traffic environments.
Window Specifications
• Window Size: 9" x 14"
• Material: Clear acrylic
• Style: Gasketed
• Shape: Rectangular/square with radiused corners
• Pane: Single pane
• Location: Centered at 60" from floor (standard)
Eliason Door Hardware
• Hardware Style: Easy Swing double-acting hardware
• Loose Hardware: Included
• Hinge Top: Standard zinc hinge
• Hinge Bottom: Bottom pin, zinc material
• Hardware Cover: Stainless steel hinge cover
• Door Swing: Right-hand or Left-hand swing option
